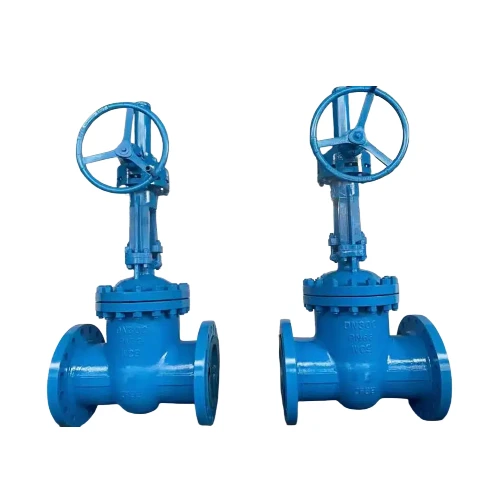

Z41H-100/160C/P High pressure flange gate valve

Operation method: Manual/Geabox/Electric

Medium: Water, steam, petroleum

Caliber: DN15-1000

Pressure: 10.0-16.0mpa

Body material: WCB/Stainless steel/LCB/LCC

Connection method: Welded/Flanged



alla laadida pdf-i
Toote üksikasjad
Tootesildid
Main components material
Nimi Materjal
Body/ Bonnet CF8 CF3 CF8M CF3M WCB LCB WC6 WC9 C5
Wedge CF8 CF3 CF8M CF3M WCB LCB WC6 WC9 C5
Vars F304 F304L F316 F316L 2CR13 F304 F304 F304 F304
Stem Nut PTFE/Aluminium Bronze
Packing PTFE/Flexible graphite Graphite
Tihend Metal spiral wound gasket Graphite
Gland CF8 CF3 CF8M CF3M WCB LCB WC6 WC9 C5
Bolt    Stainless Steel 35CrMoA
Nut Stainless Steel 45、35CrMoA
Handwheel Cast Steel



Performance parameter
Nimi PN100 PN160
PN(MPa) 10.0MPa 16.0MPa
Shell strength test pressure (MPa) 1.5 Times the nominal pressure at room temperature
High-pressure sealing Test pressure (MPa) 1.1 Times the nominal pressure at room temperature
Operating pressure at room temperature (MPa)  According to GB/T 12224 pressure temperature rating



Main external and connection dimension
PN(MPa)

DN

(mm)

 Size(mm) Weight (kg)
L D D1 D2 D8 D6 b Z-φd H D0
10.0 15 170 105 75 55 35 40 20 4-14 140 120 6.5
20 190 125 90 68 45 51 22 4-18 140 120 9
25 210 135 100 78 50 58 24 4-18 310 / 13
32 230 150 110 82 65 66 24 4-23 320 / 20
40 240 165 125 95 75 76 26 4-23 360 / 60
50 250 195 145 112 85 88 28 4-25 490 360 50
65 280 220 170 138 110 110 32 8-25 540 400 70
80 310 230 180 148 115 121 34 8-25 572 400 100
100 350 265 210 172 145 150 38 8-30 573 400 110
125 400 310 250 210 175 176 42 8-34 744 560 180
150 450 350 290 250 205 204 46 12-34 800 560 250
200 550 430 360 312 265 260 54 12-41 800 560 360
250 650 500 430 382 320 313 60 12-41 1050 640 560
300 750 585 500 442 375 364 70 16-48 1200 720 795
350 850 655 560 498 420 422 76 16-54 1430 800 1155
400 950 715 620 558 480 474 80 16-54 1743 850 1370
500 1150 815 724 635 584 576 89 24-54 2055 900 1785
16.0 15 170 110 75 52 35 40 24 4-18 230 200 7
20 190 130 90 62 45 51 26 4-23 260 200 10
25 210 140 100 72 50 58 28 4-23 280 280 14
32 230 165 115 85 65 66 30 4-25 312 320 21
40 260 175 125 92 75 76 32 4-27 350 320 26
50 300 215 165 132 95 88 36 8-25 512 360 73
65 340 245 190 152 110 110 44 8-30 560 360 110
80 390 260 205 168 130 121 46 8-30 585 400 141
100 450 300 240 200 160 150 48 8-34 631 450 185
125 525 355 285 238 190 176 60 8-41 723 560 320
150 600 390 318 270 205 204 66 12-41 820 640 462
200 750 480 400 345 275 260 78 12-48 990 720 711
250 838 580 485 425 330 313 88 12-54 1120 800 1010
300 965 665 570 510 380 364 100 16-54 1300 850 1430
