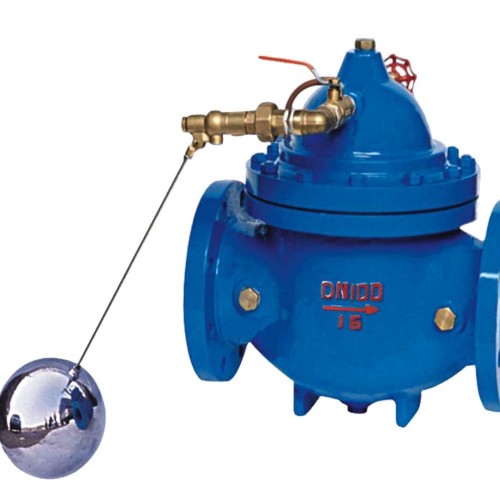

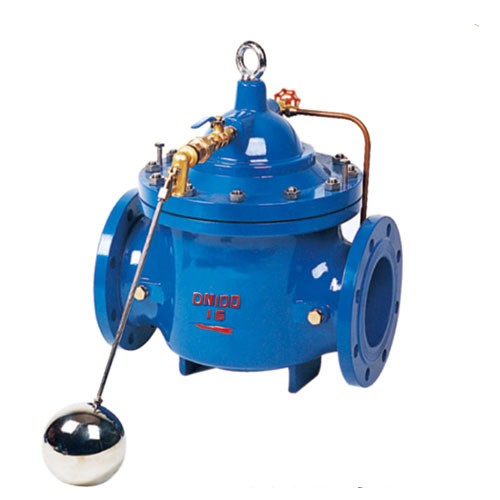

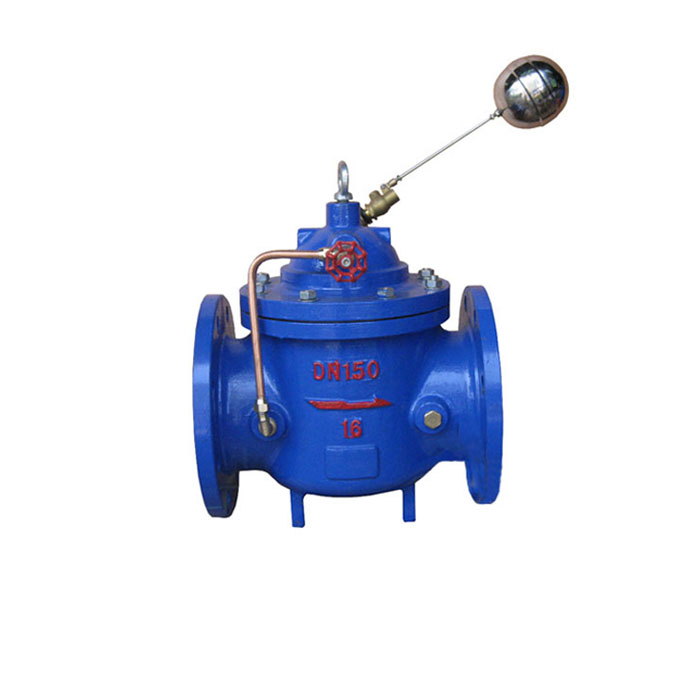

100X Remote Ball Cock 100x Manufacturer China

Medium: water, clear water
Use temperature: ≤80 ℃
Caliber: DN32-600
Pressure: 1.0-2.5MPa
Body material: cast iron
שיטת חיבור: אוגן

צור קשר עכשיו הורדה ל-pdf

פרטי מוצר

תגיות מוצר

פרמטרי מוצר:

Remote Ball Cock 100x Material of main parts
שם חלקי		חוֹמֶר
גוף שסתום		cast iron
גזע שסתום		Chrome stainless steel
Diaphragm		Ding Qing Rubber

Performance specifications of remote control floating ball valve 100X
דֶגֶם	לחץ נומינלי (מפא)	לחץ בדיקה (mpa)		טמפרטורה נכונה	מדיום ישים
		case	אטום (מים)
100X remote control floating ball valve	1 1.6 2.5	1.5 2.4 3.75	1.1 1.76 2.75	≤80 ℃	Water, clear water

Remote control floating ball valve 100X size and connection size
DN	50	65	80	100	125	150	200	250	300	350	400
L	203	216	241	292	330	356	495	622	622	787	914
H1	210	215	245	305	365	415	510	560	560	696	735
H	265	310	350	460	520	570	840	890	890	1090	1150

PRODUCT ADVANTAGES:

Application: The valve can effectively control the liquid level of the water tower or water tank, cut off or open the valve core to input water flow or prevent water flow from leaking when appropriate.

The liquid level is accurately controlled, the water level is not affected by pressure fluctuations, and the opening and closing are tight and leak-proof. , Simple maintenance. Automatic water supply system for water tanks, ponds and water towers in high-rise buildings.
