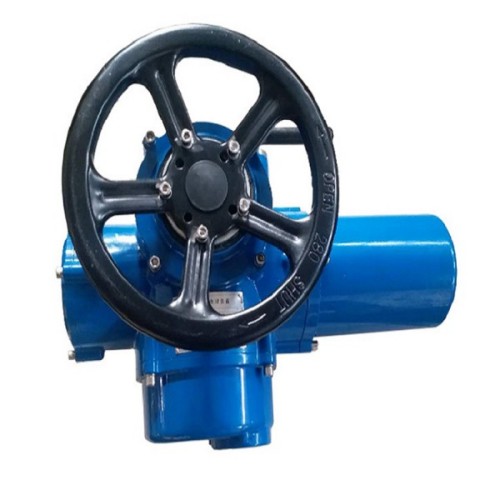

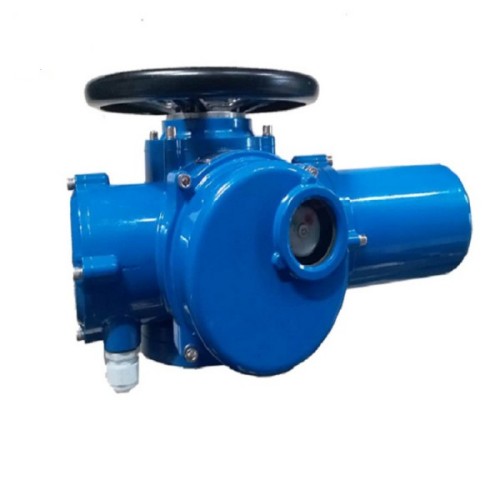

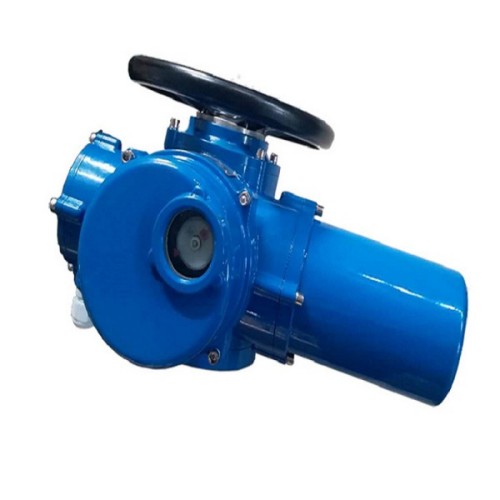

Z-15 GB Valve electrical actuator

power supply: the conventional single-phase 220V, three-phase 380V(50Hz),remote DC24VSpecial:single-phase 415V, 660V 110V, three-phase(50Hz or 60Hz)2. working environment:
טֶמפֶּרָטוּרָה :-20~+60°C(special order to 60~+80°C)
the relative humidity : 95%(25°C)
1 outdoor used forno fammable/non explosive and non-comosive medium ;

2 flameproof products are dl and dll Bt4. dl is applicable to coal mine of mining coal face
dl BT4 used for factory, applicable to the environment for the level A , lB T1~T4 group of explosive gas mixture.(see GB3836.1)

the level of protection : outdoor type and IP55 is explosion-proof type.(I P65,IP67

working system,for a short 10 minutes(special order 15~60mintres)

צור קשר עכשיו הורדה ל-pdf

פרטי מוצר

תגיות מוצר

פרמטרי מוצר:

Main Technical Parameters

Model	נָקוּב Torque (N.m)	Naximum Torque Control N.m	Minimum Torque Control (N.m)	Output spot turn number of turns (circle)	Allowed through stem diameter	Manual Speed Ratio	Output orque	Motor Power (kw)
Z-15	150	225	≤75	50	28	1:1	24	0.37
Z-20	200	300	≤100	50	40	1:1	24	0.55
Z-30	300	450	≤150	50	40	1:1	24	0.75
Z-45	450	675	≤225	120	48	1:1	24	1.1
Z-60	600	900	≤300	120	48	1:1	24	1.5
Z-90	900	1350	≤450	120	60	1:1	24	2.2
Z-120	1200	1800	≤600	120	60	1:1	24	3.0
Z-180	1800	2160	≤900	150	70	25;1	24	4.0

Main Dimensions

Model	D	ד1	ד2	d1	d	h	f	b
Z-15	145	95	75	26	4-M8	8	5	15
Z-20	185	160	125	42	4-M12	10	5	15
Z-30	185	160	125	42	4-M12	10	5	15
Z-45	225	195	150	50	4-φ18	12	5	20
Z-60	225	195	150	50	4-φ18	12	5	20
Z-90	275	235	180	62	4-φ22	14	6	22
Z-120	275	235	180	62	4-φ22	14	6	22
Z-180	330	285	220	72	4-φ27	16	8	30
