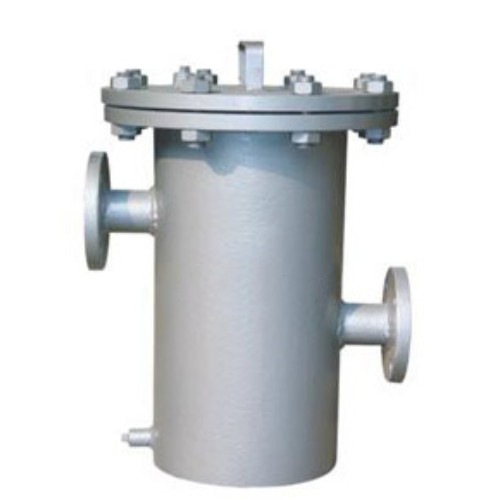

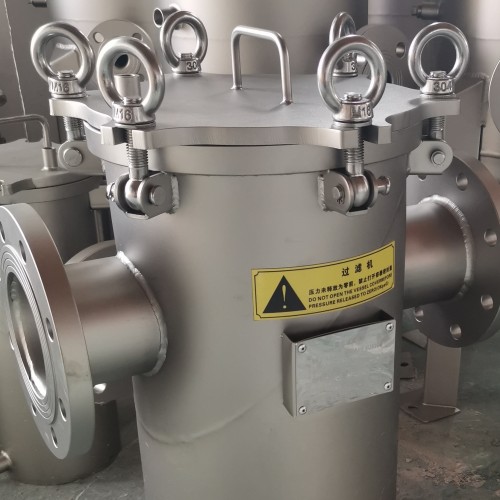

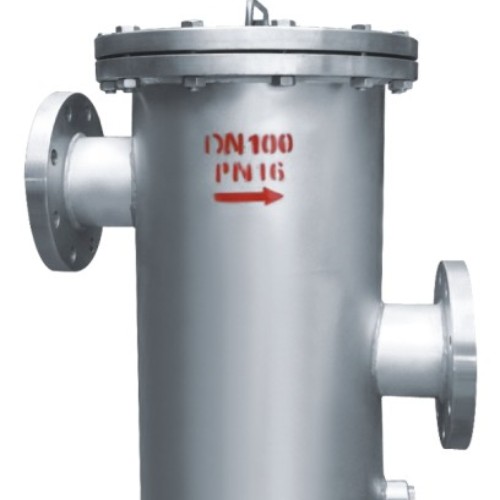

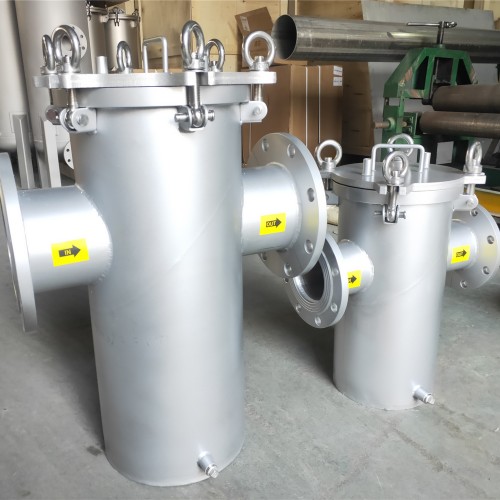

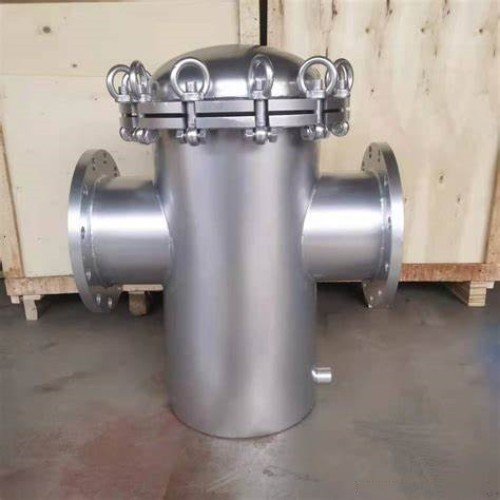

Flanged Connection Stainless Steel Basket Strainer

Medium temperature: ≤425 ℃

Medium: water, gas, oil, etc.

Caliber: DN25-300

Pressure: 1.6-4.0MPA

Body material: carbon steel, stainless steel

Ühendusmeetod: äärik

Disainistandard: riiklik standard

VÕTKE KOHE ÜHENDUST alla laadida pdf-i

Toote üksikasjad

Tootesildid

TOOTE PARAMEETRID:

Osa nimi		materjalist
main body		Carbon steel, stainless steel
Filter		roostevaba teras

mudel	Nominaalne läbimõõt (mm)	Suurus (mm)					B1 drain
mudel	Nominaalne läbimõõt (mm)	L	H	H1	H2	f	I	Ⅱ	Ⅲ
Basket filter	25	220	480	160	260	76	R1 / 2 "	DN20 plane RF	DN20 convex M
	32	220	495	160	270	76
	40	280	550	180	300	114
	50	280	550	180	300	114
	65	330	650	220	350	140
	80	340	740	260	400	168
	100	420	880	310	470	219	R3 / 4 "
	150	500	1175	430	620	273
	200	560	1540	530	780	325
	250	660	1890	640	930	426
	300	750	2130	640	1200	478

PRODUCT ADVANTAGES:

The valve can be installed on the pipeline to remove large solid impurities in the fluid, so that machinery and equipment (including compressors, pumps, etc.)

and instruments can work and run normally, to stabilize the process and ensure the safety of production.
