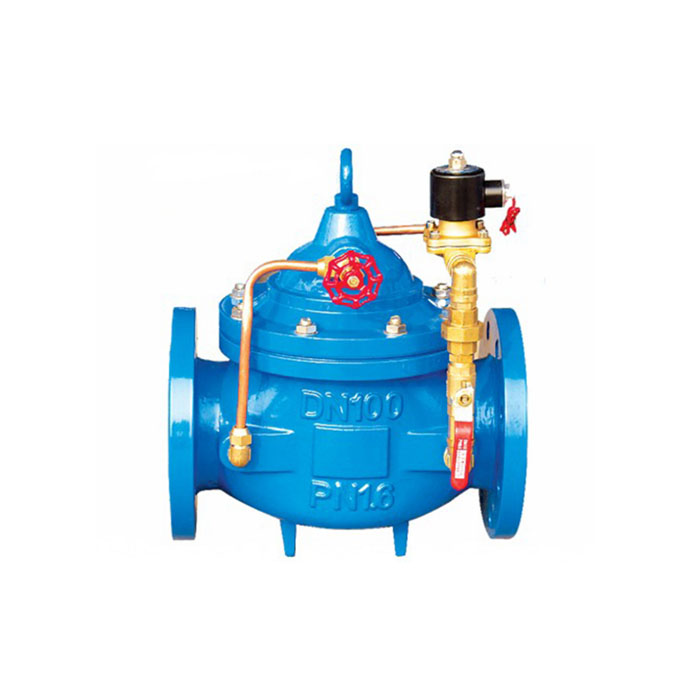

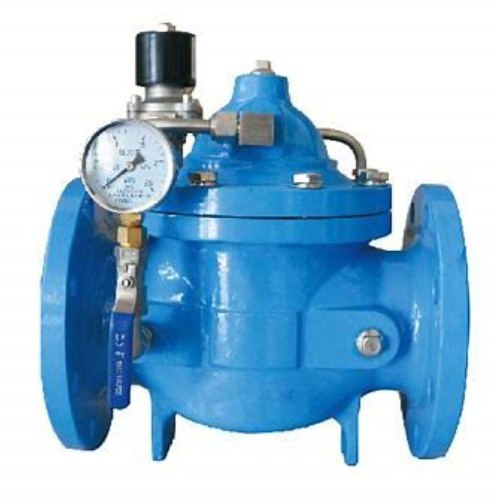

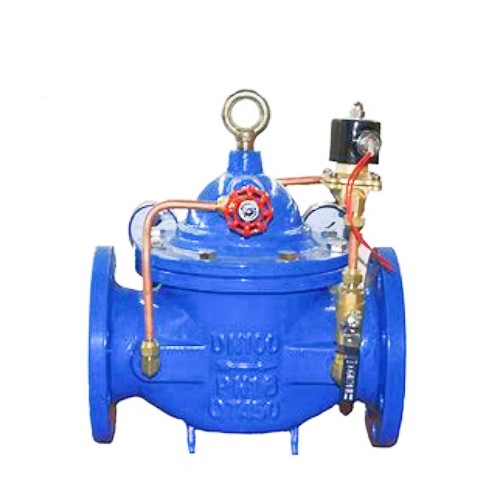

Hydraulic Electric Control Valve 600X

Keskkond: vesi

Use temperature: ≤80 ℃

Caliber: DN25-450

Pressure: 1.0-2.5MPa

Body material: cast iron

Ühendusmeetod: äärik

VÕTKE KOHE ÜHENDUST alla laadida pdf-i

Toote üksikasjad

Tootesildid

TOOTE PARAMEETRID:

Hydraulic Electric Control Valve 600X Material of main parts
Osa nimi		materjalist
Klapi korpus		cast iron
Klapi vars		Chrome stainless steel

Hydraulic electric control valve 600X performance specification
mudel	Nominaalne rõhk (mpa)	Katserõhk (mpa)		õige temperatuur	Kohaldatav meedium
		case	Suletud (vesi)
Hydraulic electric control valve 600X	1 1.6 2.5	1.5 2.4 3.75	1.1 1.76 2.75	≤80 ℃	vesi

Water Conservancy Electric Control Valve 600X Dimensions and Connection Dimensions
DN	50	65	80	100	125	150	200	250	300	350	400
L	203	216	241	292	330	356	495	622	622	787	914
H1	300	288	310	340	380	410	440	460	480	516	560
H	395	385	420	500	540	575	665	720	750	830	900

PRODUCT ADVANTAGES:

Application: The valve is often used in water supply and drainage and automatic control in industrial systems, the control response is accurate and fast

1.200X pressure regulating valve is used in domestic water supply, fire water supply and other industrial water supply systems. By adjusting the pressure reducing pilot valve, the outlet pressure of the main valve can be adjusted.

2. The outlet pressure does not change due to changes in inlet pressure and inlet flow. The outlet pressure is safely and reliably maintained at the set value, and the set value can be adjusted as needed to achieve pressure reduction.

3. Precise pressure reduction, stable performance, safe and reliable, easy installation and adjustment, and long service life.
