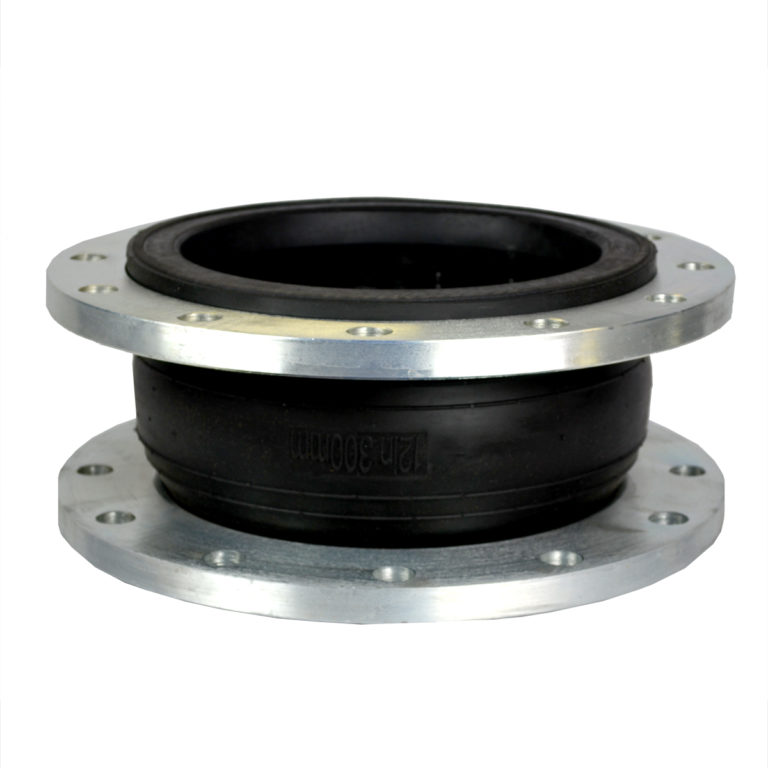

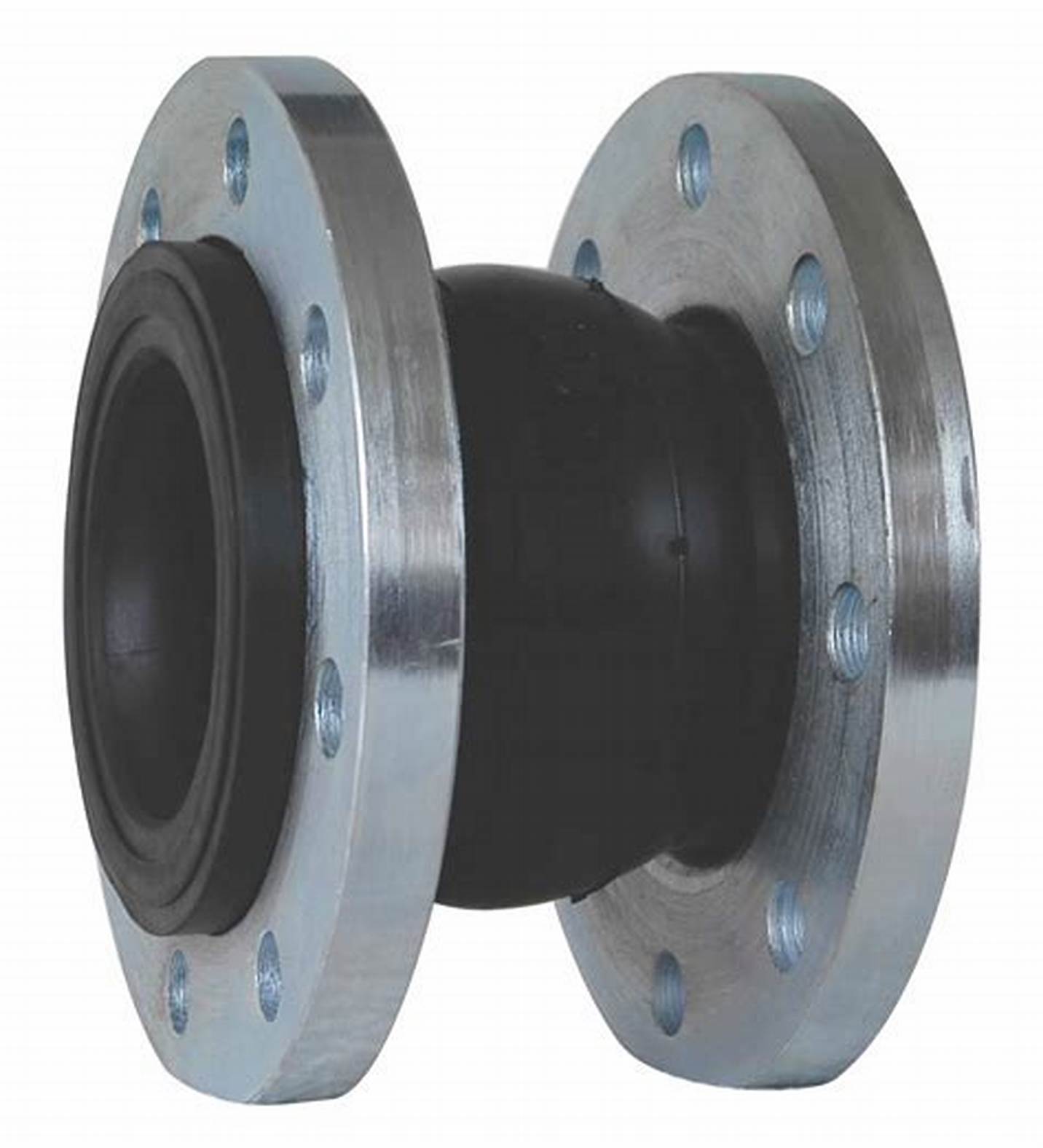

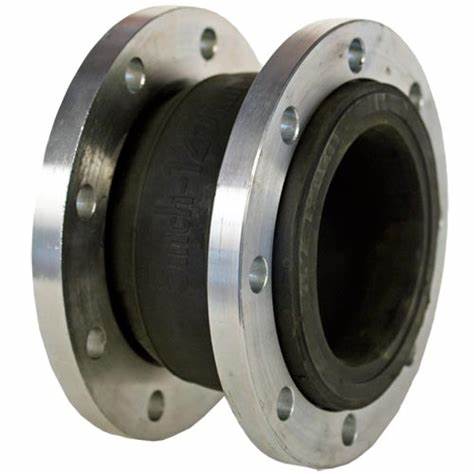

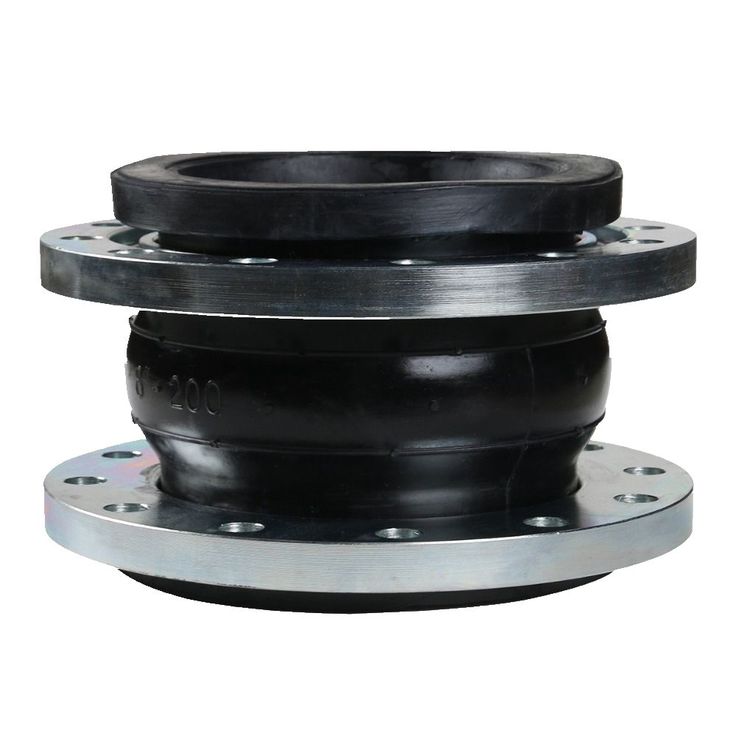

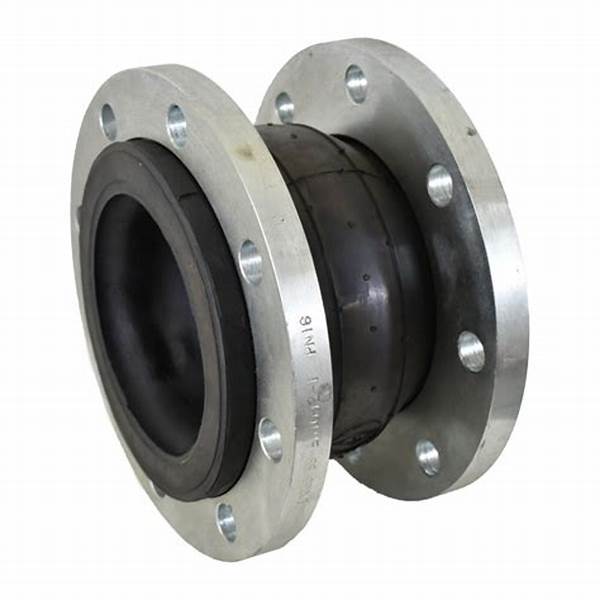

JGD41-10/16 Rubber Curved Joints

Keskkond: vesi, õli, aur

Caliber: DN32-2800

Pressure: 1.0-2.5mpa

Flange material: carbon steel stainless steel

Ühendusmeetod: äärik

VÕTKE KOHE ÜHENDUST alla laadida pdf-i

Toote üksikasjad

Tootesildid

TOOTE PARAMEETRID:

JGD41-10/16 Rubber Curved Joints Material of main parts
Osa nimi		materjalist
Flange		Carbon steel, stainless steel
Kera		EPDM, NBR

Application: It is mainly used for flexible connection of metal pipelines that transport liquid, gas and other materials.

JGD41-10 / 16 flexible rubber flexible joint

Flexible rubber flexible joint JGD41 appearance size and connection size
mudel	Nominaalne läbimõõt (mm)	Suurus (mm)
mudel	Nominaalne läbimõõt (mm)	L	D	D1	b	φd	Z
JGD41-10 / 16	32	95	135	100	16	18	4
	40	95	145	110	18	18	4
	50	105	160	125	18	18	4
	65	115	180	145	20	18	4
	80	135	195	160	20	18	4
	100	150	215	180	twenty two	18	4
	125	165	245	210	twenty four	18	8
	150	180	280	240	twenty four	twenty three	8
	200	210	335	295	twenty four	twenty three	8
	250	230	390	350	26	twenty three	8
	300	245	440	400	28	twenty three	12
	350	255	500	460	28	twenty three	12
	400	255	565	515	30	twenty three	16
	450	255	615	565	30	25	16
	500	255	670	620	32	25	20
	600	260	780	725	36	30	20
